Feature-Family-Based Reliability Analysis of Software Product Lines
This work is being developed in a jointly effort of researchers of the following universities:
BSN-SPL analysis statistics

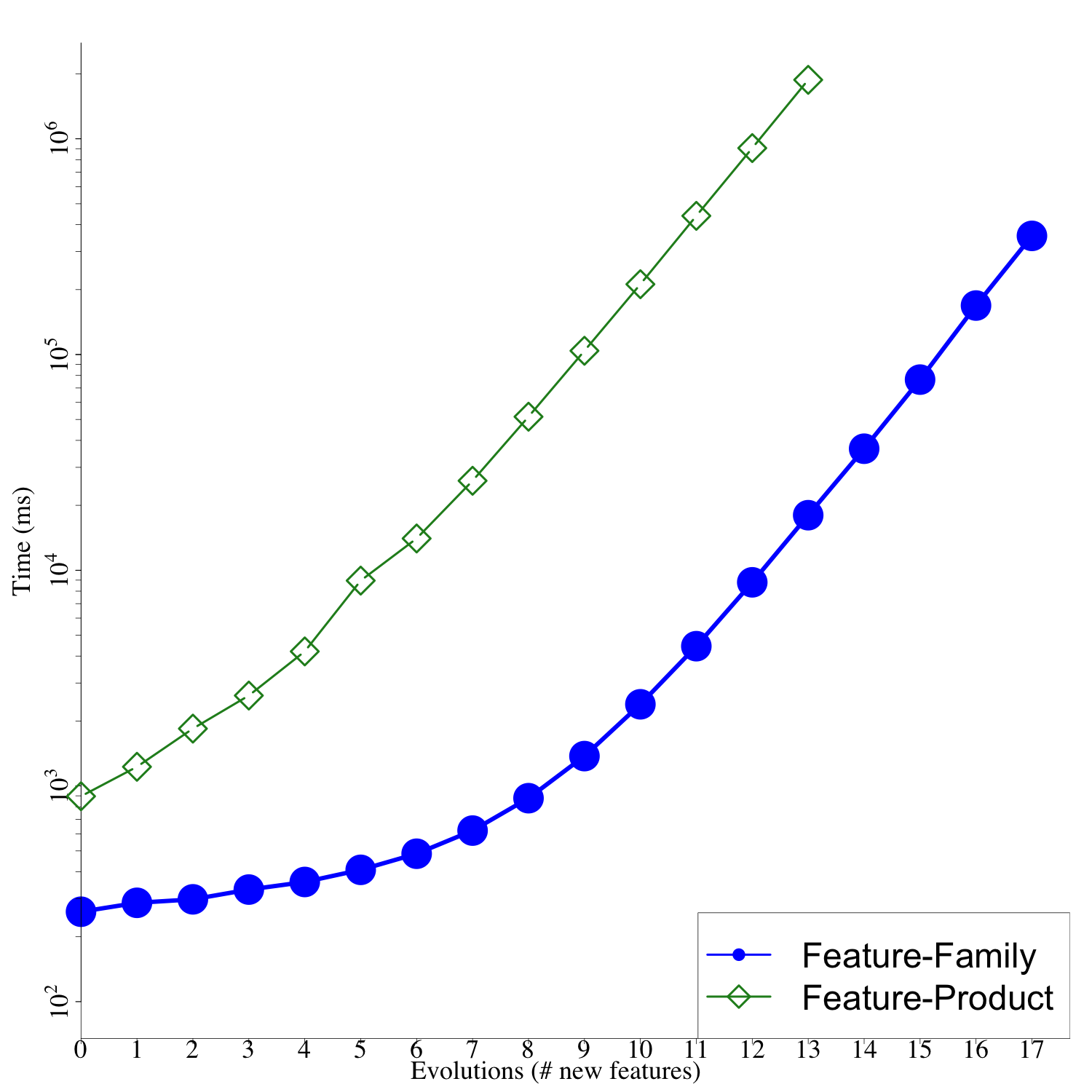

Time required
| Minepump evolutions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^2 | 10^2 | 10^2 | 10^3 | 10^3 | 10^3 | 10^3 | 10^4 | 10^4 | 10^4 |
| Feature-family | 261.18 | 287.24 | 298.10 | 330.88 | 358.81 | 408.45 | 485.06 | 621.01 | 877.52 | 1375.22 |
| Feature-product | 895.80 | 1226.97 | 1844.15 | 2624.96 | 4204.27 | 8952.61 | 14037.50 | 25989.10 | 51495.22 | 104090.89 |
| Family | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – |
| Minepump evolutions | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^5 | 10^5 | 10^5 | 10^6 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 | 10^8 |
| Feature-family | 2390.78 | 4445.44 | 8790.54 | 17995.17 | 36593.45 | 76513.51 | 168694.38 | 354887.72 | – | – | – |
| Feature-product | 211806.42 | 439411.29 | 905878.46 | 1876640.52 | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |
Space required
| Minepump evolutions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^2 | 10^2 | 10^2 | 10^3 | 10^3 | 10^3 | 10^3 | 10^4 | 10^4 | 10^4 |
| Feature-family | 113.51 | 114.05 | 114.41 | 114.34 | 114.8 | 115.61 | 116.47 | 118.48 | 129.12 | 133.96 |
| Feature-product | 210.97 | 333.42 | 504.98 | 743.93 | 1319.2 | 2400.89 | 2841.77 | 2844.10 | 2851.49 | 2879.39 |
| Family | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – |
| Minepump evolutions | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^5 | 10^5 | 10^5 | 10^6 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 | 10^8 |
| Feature-family | 162.48 | 265.31 | 390.03 | 705.39 | 1165.72 | 2224.17 | 4011.27 | 6921.67 | – | – | – |
| Feature-product | 2914.44 | 2971.55 | 3378.84 | 3789.31 | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |
Last update: March 22th., 2017.
