Feature-Family-Based Reliability Analysis of Software Product Lines
This work is being developed in a jointly effort of researchers of the following universities:
Lift system analysis statistics

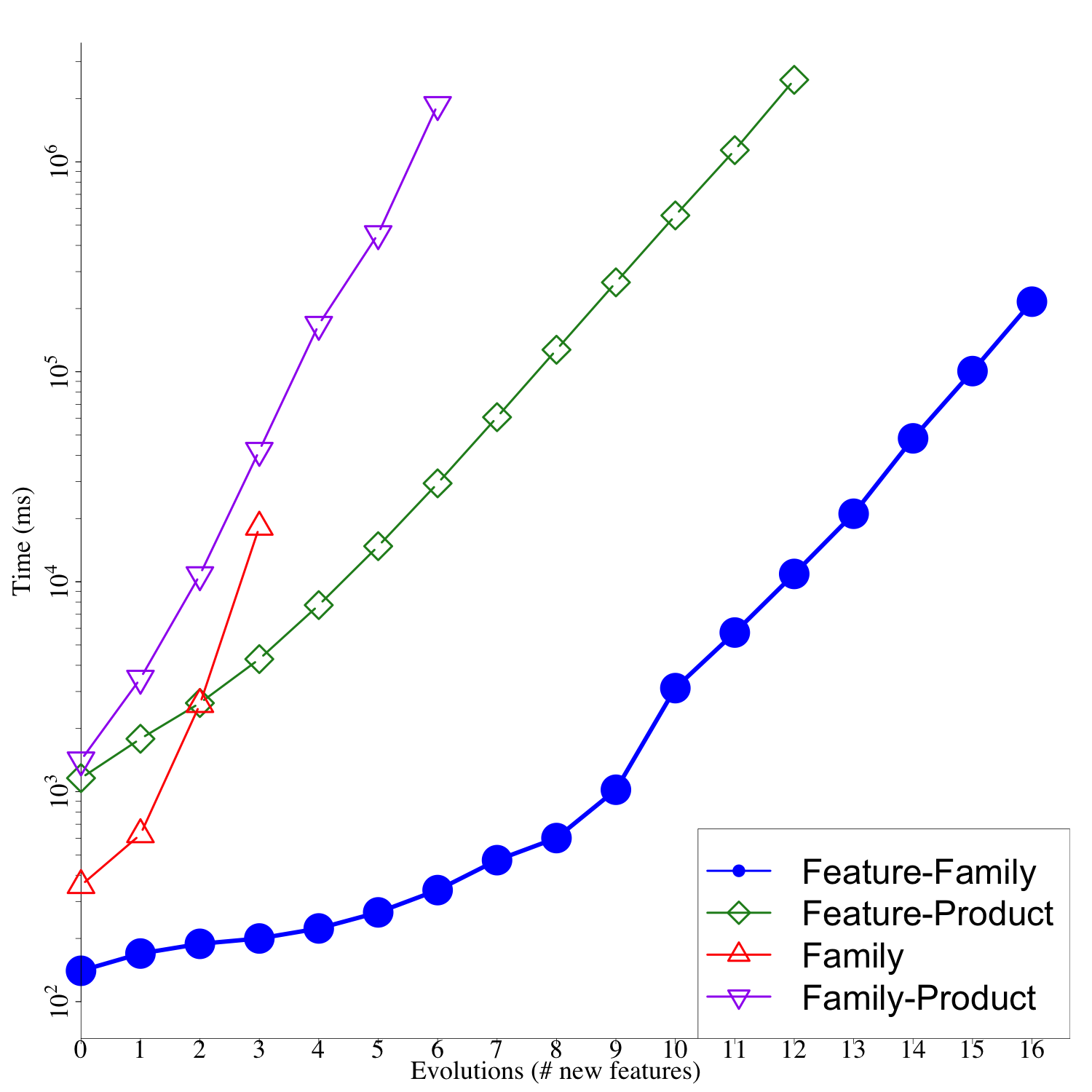

Time required
| Configuration space’s order | 10^2 | 10^3 | 10^3 | 10^3 | 10^3 | 10^4 | 10^4 | 10^4 | 10^5 | 10^5 |
|---|---|---|---|---|---|---|---|---|---|---|
| Feature-family | 140.32 | 169.51 | 188.56 | 199.95 | 223.20 | 266.20 | 339.85 | 472.01 | 601.46 | 1021.76 |
| Feature-product | 1160.78 | 1786.75 | 1289.76 | 4281.11 | 7739.10 | 14769.15 | 29418.50 | 60785.39 | 127344.46 | 266609.58 |
| Family | 358.06 | 625.16 | 2606.86 | 18223.06 | – | – | – | – | – | – |
| Family-product | 1413.9 | 3462.52 | 10777.60 | 42156.47 | 167837.42 | 453830.76 | 1870142.24 | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – |
| Configuration space’s order | 10^5 | 10^6 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 | 10^8 | 10^8 | 10^9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Feature-family | 3114.06 | 5728.56 | 10895.96 | 21081.40 | 48194.05 | 100755.69 | 215756.37 | – | – | – | – |
| Feature-product | 555525.51 | 1136506.33 | 2457317.34 | – | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |

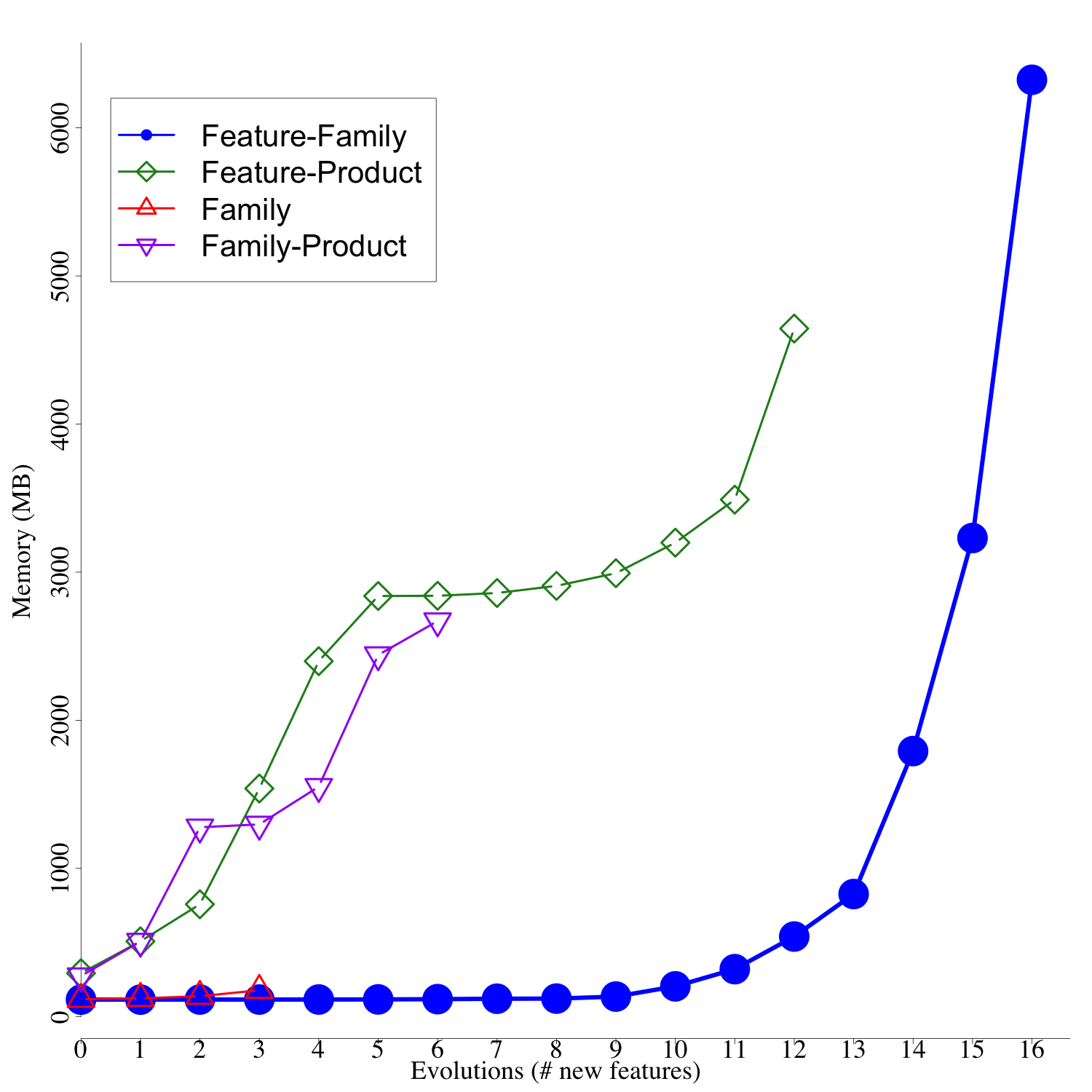

Space required
| Configuration space’s order | 10^2 | 10^3 | 10^3 | 10^3 | 10^3 | 10^4 | 10^4 | 10^4 | 10^5 | 10^5 |
|---|---|---|---|---|---|---|---|---|---|---|
| Feature-family | 113.77 | 113.85 | 114.37 | 114.27 | 114.56 | 115.23 | 116.87 | 119.88 | 120.72 | 134.41 |
| Feature-product | 292.23 | 507.43 | 757.52 | 1539.24 | 2399.04 | 2838.97 | 2840.51 | 2859.23 | 2907.41 | 2993.05 |
| Family | 116.54 | 122.63 | 136.83 | 177.02 | – | – | – | – | – | – |
| Family-product | 272.85 | 506.39 | 1277.44 | 1296.95 | 1551.49 | 2440.83 | 2669.75 | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – |
| Configuration space’s order | 10^5 | 10^6 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 | 10^8 | 10^8 | 10^7 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Feature-family | 203.42 | 319.45 | 539.66 | 826.57 | 1791.86 | 3230.47 | 6324.48 | – | – | – | – |
| Feature-product | 3199.10 | 3489.45 | 4644.73 | – | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |
Last update: March 21th., 2015.
