Feature-Family-Based Reliability Analysis of Software Product Lines
This work is being developed in a jointly effort of researchers of the following universities:
Intercloud analysis statistics

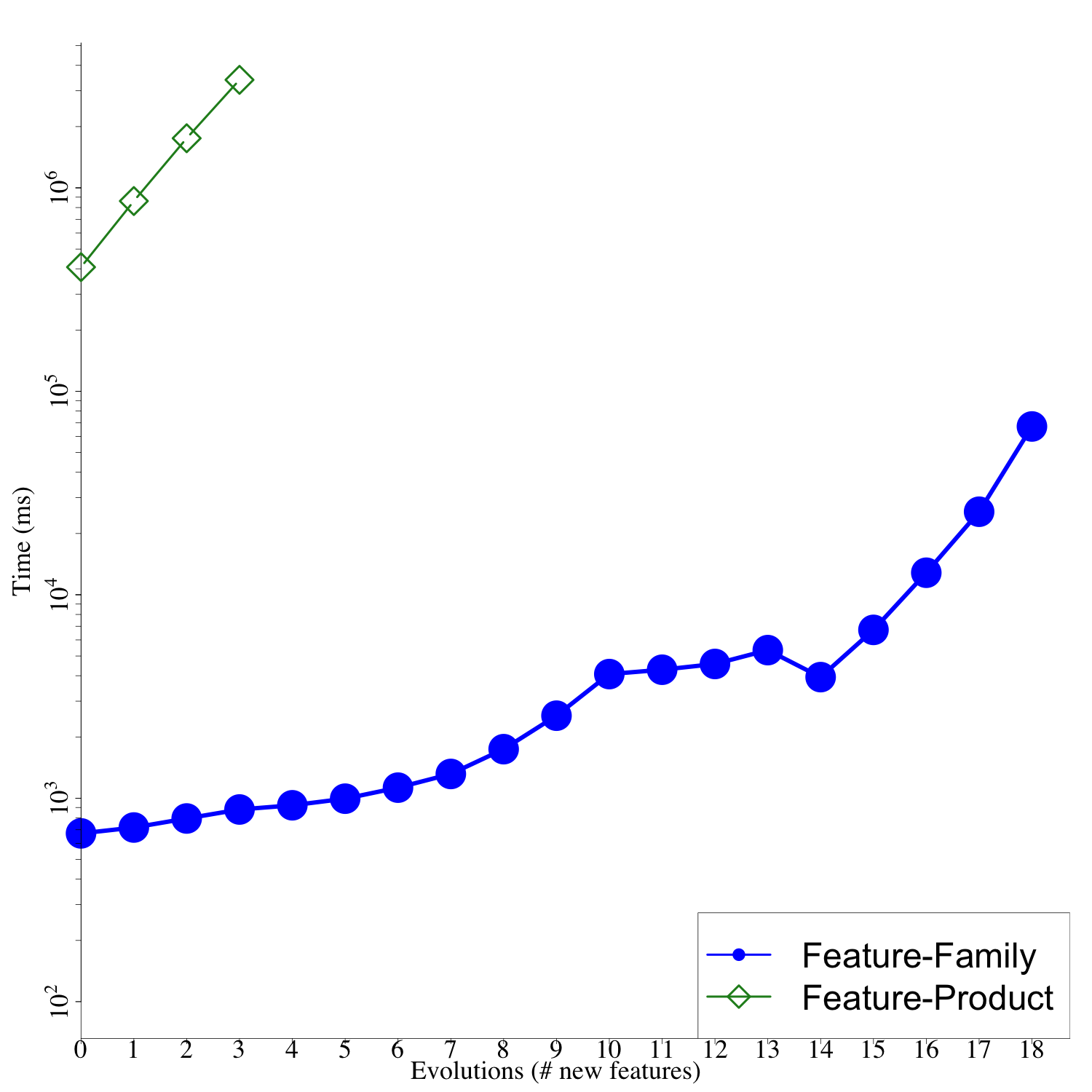

Time required
| Intercloud evolutions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^5 | 10^5 | 10^5 | 10^5 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 |
| Feature-family | 671.54 | 717.7 | 794.95 | 880.11 | 922.98 | 994.65 | 1126.91 | 1315.89 | 1742 | 2544.49 |
| Feature-product | 407702.34 | 1181.31 | 1752682.98 | 3394277.78 | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – |
| Intercloud evolutions | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^8 | 10^8 | 10^8 | 10^8 | 10^9 | 10^9 | 10^9 | 10^10 | 10^10 | 10^10 | 10^11 |
| Feature-family | 4074.43 | 4280.4 | 4568.7 | 5344.4 | 3936.76 | 6719.68 | 12829.35 | 25588.69 | 67156.86 | – | – |
| Feature-product | – | – | – | – | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |

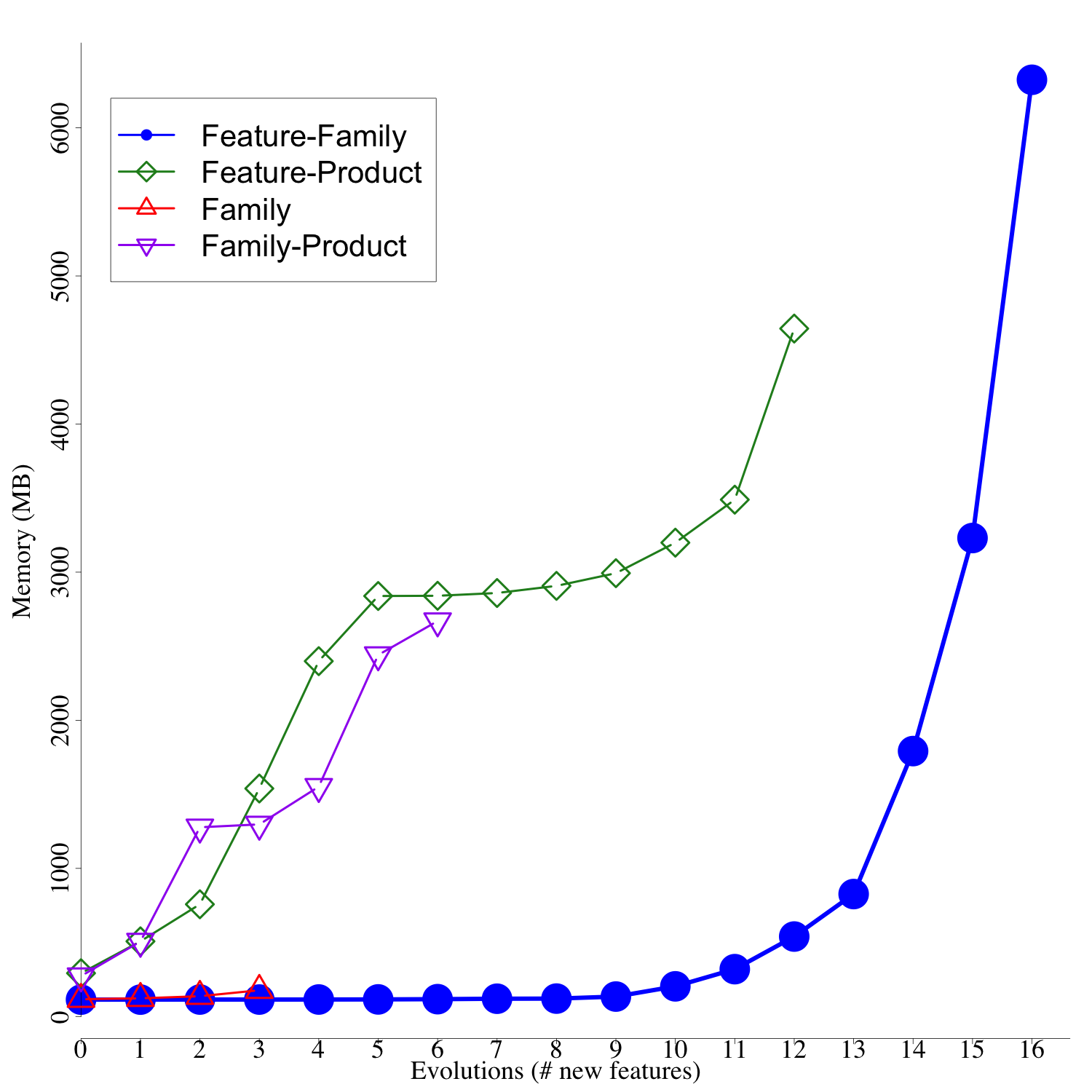

Space required
| Intercloud evolutions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^5 | 10^5 | 10^5 | 10^5 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 |
| Feature-family | 119.44 | 119.87 | 127.68 | 127.79 | 136.03 | 132.63 | 136.3 | 143.96 | 152.61 | 175.78 |
| Feature-product | 3071.58 | 3158.59 | 3602.16 | 4884.81 | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – |
| Intercloud evolutions | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^8 | 10^8 | 10^8 | 10^8 | 10^9 | 10^9 | 10^9 | 10^10 | 10^10 | 10^10 | 10^11 |
| Feature-family | 224.06 | 223.7 | 251.48 | 275.81 | 237.67 | 378.87 | 635.76 | 1102.48 | 2628.21 | – | – |
| Feature-product | – | – | – | – | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |
Last update: march 21th., 2017.
