Feature-Family-Based Reliability Analysis of Software Product Lines
This work is being developed in a jointly effort of researchers of the following universities:
BSN-SPL analysis statistics

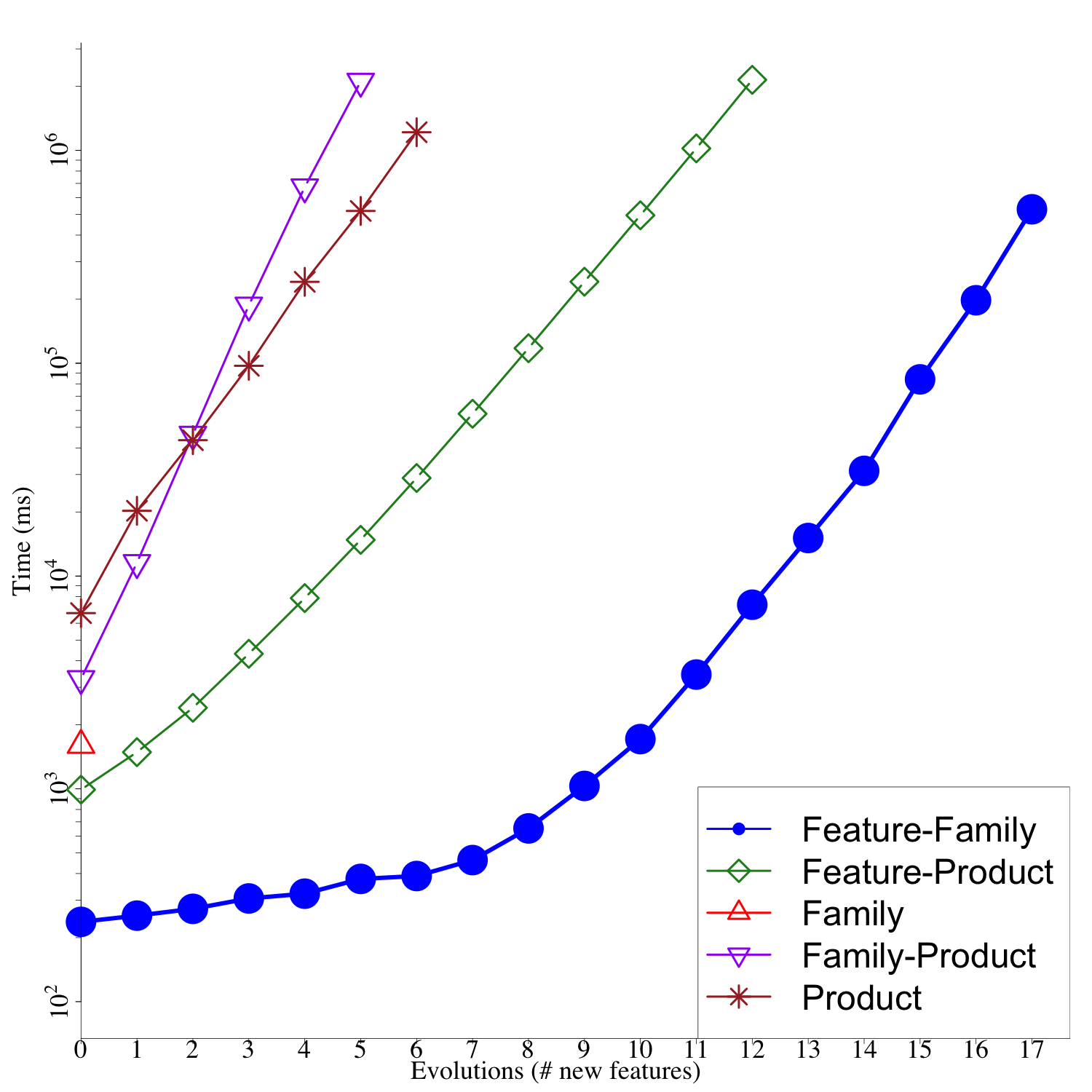

Time required
| BSN-SPL’s evolutions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^2 | 10^2 | 10^3 | 10^3 | 10^3 | 10^3 | 10^4 | 10^4 | 10^4 | 10^5 |
| Feature-family | 237.14 | 253.65 | 273.01 | 305.48 | 321.69 | 377.40 | 389.41 | 462.66 | 651.84 | 1032.05 |
| Feature-product | 991.30 | 1487.19 | 2404.18 | 4312.01 | 7875.91 | 14788.91 | 28881.71 | 57887.92 | 117630.81 | 241553.61 |
| Family | 1604.07 | – | – | – | – | – | – | – | – | – |
| Family-product | 3288.70 | 11543.38 | 46273.48 | 187134.89 | 672512.22 | 2109118.92 | – | – | – | – |
| Product | 6696.06 | 20259.05 | 43489.98 | 97280.21 | 241249.72 | 519495.92 | 1217404.53 | – | – | – |
| BSN-SPL’s evolutions | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^5 | 10^5 | 10^6 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 | 10^8 | 10^8 |
| Feature-family | 1713.19 | 3443.81 | 7332.75 | 15090.83 | 31208.01 | 83984.25 | 197660.21 | 528948.31 | – | – | – |
| Feature-product | 495594.45 | 1022294.56 | 2145986.30 | – | – | – | – | – | – | – | – |
| Family | – | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |

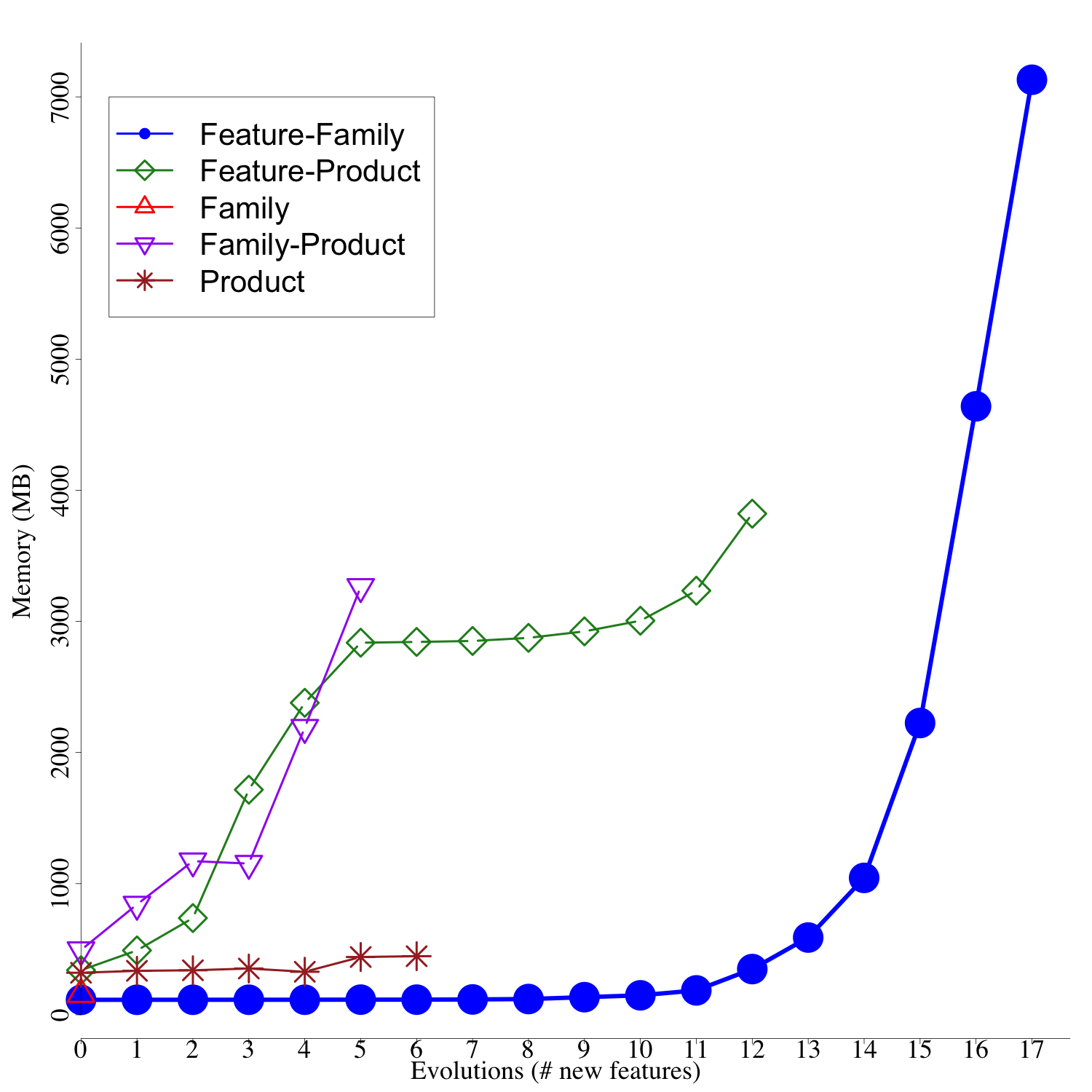

Space required
| BSN-SPL’s evolutions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^2 | 10^2 | 10^3 | 10^3 | 10^3 | 10^3 | 10^4 | 10^4 | 10^4 | 10^5 |
| Feature-family | 114.05 | 114.30 | 114.52 | 114.56 | 114.83 | 115.37 | 115.32 | 116.97 | 120.09 | 134.23 |
| Feature-product | 339.91 | 490.76 | 737.50 | 1716.41 | 2379.06 | 2837.60 | 2843.36 | 2850.78 | 2874.49 | 2923.93 |
| Family | 156.54 | – | – | – | – | – | – | – | – | – |
| Family-product | 493.99 | 841.31 | 1171.71 | 1153.13 | 2189.89 | 3263.80 | – | – | – | – |
| Product | 320.43 | 335.18 | 339.40 | 352.72 | 327.95 | 440.60 | 446.75 | – | – | – |
| BSN-SPL’s evolutions | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Configuration space’s order | 10^5 | 10^5 | 10^6 | 10^6 | 10^6 | 10^6 | 10^7 | 10^7 | 10^7 | 10^8 | 10^8 |
| Feature-family | 148.34 | 186.03 | 348.58 | 588.99 | 1043.94 | 2225.13 | 4640.35 | 7130.79 | – | – | – |
| Feature-product | 3005.12 | 3234.19 | 3821.39 | – | – | – | – | – | – | – | – |
| Family | 156.54 | – | – | – | – | – | – | – | – | – | – |
| Family-product | – | – | – | – | – | – | – | – | – | – | – |
| Product | – | – | – | – | – | – | – | – | – | – | – |
Last update: march 21th., 2017.
